Product use and characteristics
For the family life of water, and with water, tap water pressure, garden watering, vegetable greenhouses watering and aquaculture and other occasions. Features: The pump has the advantages of automatic high pressure self-priming pump, the pump body with stainless steel, with beautiful appearance, light structure, durable and light corrosion advantages, especially for conveying (1).requiring anti-pollution liquid ; (2).lightly corroded liquid.
Power |
1/4HP |
1/4HP |
---|---|---|
Voltage |
220V |
110/220V |
Frequency |
50Hz |
60Hz |
Phase |
1Φ |
1Φ |
Rotation Number |
2800r/min |
3500r/min |
Rated Flow |
20L/min |
24L/min |
Rated Lift |
9M |
12M |
Maximal Flow |
28L/min |
32L/min |
Maximal Lift |
26M |
28M |
Suction Lift |
7M |
9M |
Diameter |
3/4" |
3/4" |
Pressure switch control |
NO:1.0bar OFF:2.0bar |
NO:1.4bar OFF:2.4ba |

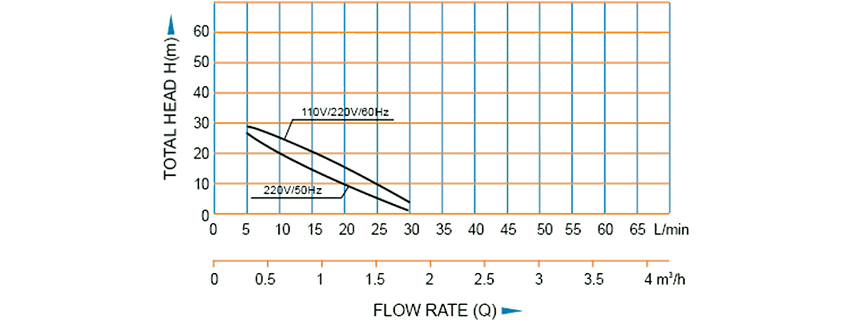

TOTAL HEAD-FLOW RATE GRAPH
