PRODUCTS-XHPAM70

XHPAm70

PRODUCTS-XHPAM70

Product use and characteristics

For the family life of water, and with water, tap water pressure, garden watering, vegetable greenhouses watering and aquaculture and other occasions. This type of pump for conveying 60 ℃ below, no solid suspended solids, non-corrosive liquid.

Features: This type of pump due to the configuration of the pressure tank and pressure switch, the use of no need to cut off the power, through the open and close the faucet, you can directly control the pump.

Contact Us

PRODUCTS-XHPAM70 Details

Power

370W

Voltage

220V

Frequency

50Hz

Phase

Number of poles

2

Rotation Number

2850r/min

Rated How

16Umin

Rated Lift

32M

Maximal Flow

50l_/min

Maximal Lift

45M

Suction Lift

9M

Diameter

G1"

Pressure switch control

NO:2.0bar OFF:3.2bar

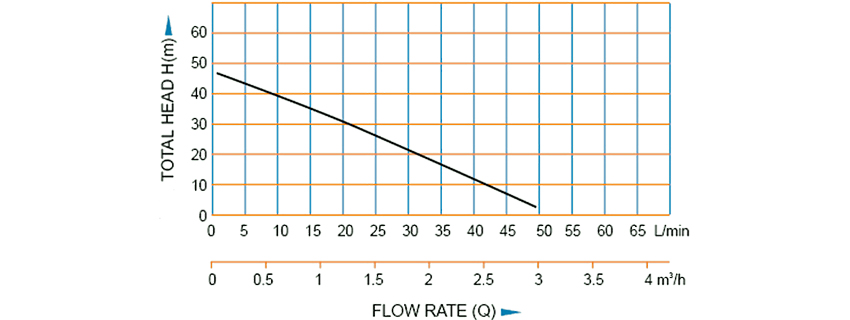

TOTAL HEAD-FLOW RATE GRAPH

xhpam70-1
